JUMBO BLOCK® Module
JUMBO BLOCK® Heavy-Duty Cover Plate
JUMBO BLOCK® Heavy-Duty Cover Plate
The JUMBO BLOCK® is the core of a system, designed for easy installation and high water retention capacity. Its modular design allows for flexible configurations for the specific needs of urban environments.
It is a massive, hollow, load-bearing concrete module with an impressive capacity to support up to 792 tonnes. *
- Load Capacity: Class F 900
- Width: 2.5 m
- Length: 2.5 m
- Height: 2.5 m
- Material: High-performance concrete
- Capacity: 13.9 m³ water / block
- Water column per block: 2,224 l/m² water
This block is designed for underground installation, forming the backbone of a modular and scalable retention system.
* depending on application
JUMBO BLOCK® Heavy-Duty Cover Plate
JUMBO BLOCK® Heavy-Duty Cover Plate
JUMBO BLOCK® Heavy-Duty Cover Plate
The cover plate provides an ultra-strong, load-bearing surface above the JUMBO BLOCK®.
It enables heavy-duty applications like roads, airport runways, and industrial sites, while ensuring surface stability and protecting the system below.
It ensures the stability of the system while also contributing to its overall efficiency by preventing water loss through evaporation.
- Width: 2.45 m
- Length: 2.45 m
- Thickness: 15-20 cm *
- Material: Reinforced concrete for optimal durability and load-bearing capacity.
* depending on application
JUMBO BLOCK® Side Plate
JUMBO BLOCK® Side Plate
JUMBO BLOCK® Side Plate
The Side Plate is a critical component in sealing the JUMBO BLOCK® system.
Side plates are installed to enclose the JUMBO BLOCK® modules on the sides, preventing lateral water movement and ensuring system integrity.
They help stabilize the overall structure and protect against shifting forces.
- Width: 2.5 m
- Length: 2.65-2.75 m *
- Thickness: 8-10 cm *
- Material: High-strength concrete designed for structural integrity and long-term use.
* depending on application
JUMBO BLOCK® Base Plate
JUMBO BLOCK® Side Plate
JUMBO BLOCK® Side Plate
The base plate provides a stable foundation for each JUMBO BLOCK®, distributing the weight evenly and creating a secure, level base.
This feature is essential for ensuring structural stability and longevity.
Made of high-quality concrete, it ensures that the system remains secure and efficient under varying environmental conditions.
- Width: 2.45 m
- Lenght: 2.45 m
- Thickness: 10-15 cm *
- Material: Durable concrete designed for long-term stability and strength, especially for underground installation.
* depending on application

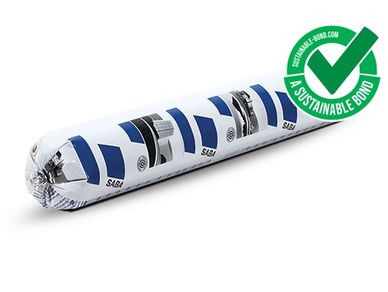

SABA Ecoseal Bio HM
1K sealant for sealing in water and wastewater applications, from pH value 5.0
SABA Ecoseal Bio HM is a mechanically and/or microbiologically resistant, permanently elastic sealant. Very low in emissions, solvent-free, stable, UV-resistant, and (air) humidity-curing based on MS polymer technology (one-component). Free from hazard symbols, easy to apply, shows minimal shrinkage, and, thanks to its excellent elastic recovery after stress, can be used sustainably within the maximum permissible deformation.
SABA Ecoseal Bio HM is particularly suitable for sealing joints that are microbiologically exposed to, among other things, composting processes, drinking water, and wastewater/treated water, as well as for joints subjected to heavy mechanical loads, such as in prefabricated concrete slabs, precast concrete flooring systems, concrete overflow gutters, galleries, basins, wastewater systems, retaining walls, segmented bolt-fastened tanks, and silos built on foundations.
- Mechanically and/or microbiologically resistant, permanently elastic sealant.
- Resistant to fecal matter and mixed manure
- Resistant to a specified water pressure
- Freshwater and saltwater resistant
- Usable in the SABA-Sealflex system for joints under extreme movement stress or in renovation projects
- CE marking based on EN 15651-1, Type F 25HM INT-EXT & EN 15651-4, Type PW 25HM INT-EXT
- Complies with EMICODE EC1 plus
- ISEGA (in connection with HACCP)
- Atest PZH • KIWA NSF/ANSI 61; K99573 (only Winter White)
- Suitable for applications according to IVD guideline no. 1, 15, 16, 23, 27, 28 & 30
SABA Ecoseal AC
1K sealant for sealing in water and wastewater applications, pH value <4.5
SABA Ecoseal AC is an acid-resistant, permanently elastic sealant. Solvent-free, stable, UV-resistant, and (air) humidity-curing based on MS polymer technology (one-component). Free from hazard symbols, odorless, easy to apply, and shows minimal shrinkage.
SABA Ecoseal AC is particularly suitable for sealing joints and/or overlaps in microbiologically contaminated environments that come into contact with acid, such as in (prefabricated) construction elements, overflow gutters, metal parts, bolt heads, various types of (biogas) tanks and silos, basins, JGS facilities, and storage rooms exposed to composting processes, fertilizers, drinking water, and wastewater/treated water.
- Acid-resistant and permanently elastic sealant
- Resistant to manure, wastewater, inorganic and organic acids
- Resistant to a specified water pressure
- Excellent temperature resistance
- Outstanding workability
- General building authority approval Z-74.62-147 by DIBt, SABA Ecoseal AC as a component of the SABA joint sealing system for use in L- and A-facilities of JGS and biogas plants.

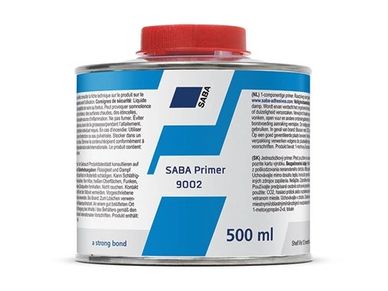

SABA Primer 9002
SABA Primer 9002
SABA Primer 9002 is a transparent adhesion promoter (one-component)
SABA Primer 9002 has been developed for the permanent bonding of SABA adhesives and/or sealants to various porous and non-porous substrates, such as concrete, metals, plastics, coatings, or paints.
Suitable for both sealants, SABA Ecoseal Bio HM and SABA Ecoseal AC, in combination with concrete and metal.
- Transparent adhesion promoter (one-component)
- Permanent bonding of SABA adhesives and/or sealants to various porous and non-porous substrates
- Contains no isocyanates
- Easy to apply
- Short drying time
- Complies with EN 14188-4
SABA Sealer MBT Kartuschen
2K Sealant
SABA Sealer MB-T has been developed for the elastic, liquid-tight sealing of vertical (expansion) joints.
Suitable for facilities where substances are stored, filled, or processed that are harmful to aqueous environments and/or where (temporary) high chemical resistance is required.
Examples include gas stations, chemical plants, and emergency exits. Also suitable for normal or fuel-resistant (expansion) joints in pavement constructions made of (prefabricated) elements. Used on (highways) roads, parking lots, bridge decks, airports, industrial floors, and/or other trafficked surfaces.
- Highly chemical-resistant, stable, and permanently elastic sealant based on polysulfide (two-component)
- Permanently elastic and liquid-tight sealing
- Resistant to certain motor fuels, solvents, and chemicals
- Withstands extreme climate and weather conditions
- Usable in the SABA-Sealflex system for joints under extreme movement stress or for renovation projects
⚠ Note: May only be applied to WHG facilities by certified specialist companies.
- CE marking based on EN 14188-2, Class A-D & EN 15651-4, Type PW 25LM INT-EXT
- General building authority approval Z-74.6-155 by DIBt, SABA joint sealing system for use in LAU facilities
- Meets the requirements of FS S-SS 200E for use on airports

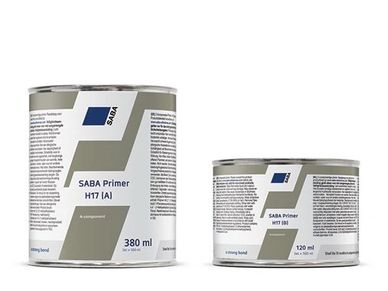

SABA Primer H17
2K Primer for Concrete
SABA Primer H17 is an adhesion promoter for porous substrates (two-component).
SABA Primer H17 has been developed for the permanent bonding of SABA polysulfide sealants and coatings with various porous substrates.
- Adhesion promoter for porous substrates (two-component)
- Permanent bonding of SABA polysulfide sealants and/or coatings with various porous substrates
- Contains no isocyanates
- Excellent resistance to moisture, solvents, acids, and bases
- Complies with EN 14188-4
SABA Flexcoat- K
SABA Flexcoat- K
Coating for Concrete Protection in Water and Wastewater Applications
SABA Flexcoat K is a semi-elastic, chemical-resistant, and wear-resistant coating. Solvent-free, stable, crack-bridging, and UV-resistant, based on epoxy-polysulfide (two-component).
SABA Flexcoat K is particularly suitable for coating oil and grease separators, tanks, silos, and water treatment plants. As a protective coating,
SABA Flexcoat K provides resistance against (bio)chemical exposure.
- Chemical-resistant, wear-resistant, and semi-elastic coating based on epoxy-polysulfide (two-component)
- Protects against (bio)chemical exposure
- Low vapor permeability
- Resistant to specified chemicals
- Easy to repair and maintain
- Complies with DIN EN 858-1 (Separators for light liquids)
- Complies with DIN EN 1825-1 (Separators for fats)
JUMBO BLOCK® Sensor
JUMBO BLOCK® Permanode
JUMBO BLOCK® Gateway
Our sensors are designed to monitor environmental conditions, water levels, and system performance in real-time.
They provide critical data for proactive maintenance and efficient water management, ensuring the JUMBO BLOCK® system operates optimally under various conditions.
Features
- LoRaWAN
- Low power consumption
- Distance detection using ultrasonic technology
- Flat object range: 280mm - 7500mm
- Accuracy: ±(1cm + S*0.3%) (S: distance)
- Measurement angle: 40°
- Cable length: 25cm
- Temperature compensation
- Frequency bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- AT commands for parameter modification
- Uplink at regular intervals
- Downlink for configuration changes
- Waterproof IP66 enclosure
- 4000mAh or 8500mAh battery for long-term operation
Typical applications
- JUMBO BLOCK® systems
- Liquid level measurement
- Automatic control, sewage systems
- Monitoring of water or groundwater levels
Further information will follow!
JUMBO BLOCK® Gateway
JUMBO BLOCK® Permanode
JUMBO BLOCK® Gateway
The gateways facilitate seamless communication between the sensors and the central management system.
They enable reliable data transmission and remote monitoring, allowing for efficient management and immediate response to changing conditions.
Features
- Open Source Embedded Linux system
- Managed by Web GUI, SSH via LAN or WiFi
- Support Semtech UDP packet forwarder
- Support LoRaWAN Station Connection
- Cellular Failover connection (optional)
- Direct Communication to LoRaWAN ABP Node
- LoRaWAN packet filtering
- Far seeing LED indicator
- Built-in GPS module for location & timing
- External fiber glass antenna
- Auto-Provision
- Remote Monitoring
- 802.3af PoE
- IP65
- Lighting Protection
- Power Consumption:12V, 300-500mA
Typical applications
- JUMBO BLOCK® systems
- Smart Metering
- Smart Agriculture
- Smart Cities
- Smart Factory
- Smart Buildings & Home Automation
- Logistics and Supply Chain Management
Further information will follow!
JUMBO BLOCK® Permanode
JUMBO BLOCK® Permanode
JUMBO BLOCK® Permanode
For businesses and authorities that need to store data for extended periods, such as identity data, Permanodes provide an ideal solution.
They facilitate secure data storage and transmission, ensuring the integrity and reliability of the data collected from the JUMBO BLOCK® system.
Features
- IOTA (for decentralized data transmission and storage)
- Operating temperature: -20°C to 60°C
- IP68 (Dustproof, fully waterproof)
- 32 GB flash memory
- Uplink transmission, downlink for configuration changes and software updates
- 5V / 3A, 3.5 - 5.0 W
- Connection to a photovoltaic panel (Min. 10W to recommended 20W)
- LiFePO4 battery with 8500mAh capacity
- 2-3 days autonomy
- Aluminum/plastic composite material
- IP68 for outdoor use
- LoRaWAN/Wi-Fi/Ethernet
- Operating lifetime: 5 years, with regular firmware updates
Typical applications
- JUMBO BLOCK® systems
- Smart Metering
- Smart Agriculture
- Smart Cities
- Smart Factory
- Smart Buildings & Home Automation
- Logistics and Supply Chain Management
Further information will follow!
JUMBO BLOCK® Repair Mortar
The JUMBO BLOCK® Repair Mortar is designed to quickly repair minor cracks or damages in the concrete elements.
It is easy to apply and restores the structural integrity of the JUMBO BLOCK® modules, extending their lifespan.
Further information will follow!
