A System, Not a Single Element
Comparable to Cast-in-Place Concrete Structures
Load Distribution Instead of Point Loading

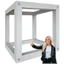

JUMBO BLOCK is not a conventional single component, but a modular reinforced concrete system that behaves as a unified structural element once installed.
Modules are arranged in a single layer and connected directly to each other. This creates a continuous structural system below the surface that distributes loads rather than concentrating them locally.
The load-bearing capacity results from the interaction of:
- frame structure
- system interaction
- structural slab
- soil cover
Load Distribution Instead of Point Loading
Comparable to Cast-in-Place Concrete Structures
Load Distribution Instead of Point Loading
A key structural advantage lies in how loads are transferred.
Traffic loads are spread through the pavement layers and a typical soil cover of 80–100 cm before reaching the structure.
This leads to:
- reduced local stress concentrations
- distributed load transfer
- activation of multiple modules simultaneously
The structural slab further enhances load distribution across the system.
Comparable to Cast-in-Place Concrete Structures
Comparable to Cast-in-Place Concrete Structures
Comparable to Cast-in-Place Concrete Structures
In its final state, the system behaves similarly to a single-layer reinforced concrete structure.
Design is carried out on a project-specific basis in accordance with:
- EN 1990
- EN 1991
- EN 1992
- EN 1997
This makes JUMBO BLOCK a standardizable engineering solution, not a special-case system.
Robust and Redundant
Separation of Structure and Waterproofing
Comparable to Cast-in-Place Concrete Structures
The system is designed for robustness and redundancy.
Key advantages:
- distributed load transfer
- high structural reserves due to system interaction
- low sensitivity to local overloads
- efficient and repeatable construction
- scalable modular expansion
Separation of Structure and Waterproofing
Separation of Structure and Waterproofing
Separation of Structure and Waterproofing
The technical functions are clearly separated:
- structure → load-bearing function
- sealing system → waterproofing
This separation simplifies both design and approval processes.
Infrastructure-Ready Design
Separation of Structure and Waterproofing
Separation of Structure and Waterproofing
JUMBO BLOCK is not an unconventional solution, but a systematically designable reinforced concrete structure.
For municipalities and planners, this means:
- high technical transparency
- easy integration into planning processes
- reliable basis for infrastructure development
Conclusion
Conclusion
Conclusion
The structural strength of JUMBO BLOCK lies in its system behavior:
load distribution, modular interaction, and the structural slab work together to create a robust, reliable, and scalable infrastructure solution.
