Benefits and Magic of the JUMBO BLOCK® System
Why Choose the JUMBO BLOCK® System?
- Effective & Cost-Efficient: Avoid costly flood damage with a proactive solution that reduces repair and recovery expenses over time.
- Inconspicuous Design: Installed underground, the system preserves the natural landscape and existing infrastructure, leaving the surface fully usable.
- Unmatched Load Capacity: Certified to Super Load Xtreme (SLX 200+) standards, each block withstands loads of 200+ tons — far exceeding the requirements of LM1-4 load classes. This makes it the ultimate solution for heavily loaded infrastructures like airports, industrial sites, and container terminals.
- Massive Water Storage: Designed to handle extreme rainfall events, each block provides significant water retention, making it a vital resource for regions prone to flooding.
- Durability & Low Maintenance: Built from high-grade concrete, the system offers exceptional durability and requires minimal maintenance, ensuring long-term performance and reliability.
- Sustainable Solution: By reducing urban flooding and promoting natural water cycles, JUMBO BLOCK® protects both communities and ecosystems. Additionally, the use of eco-friendly materials and recycled resources supports a sustainable construction process.
The JUMBO BLOCK® System – Maximizing Water Retention Without Sacrificing Land
Our system creates large underground retention areas without sacrificing valuable surface land or harming the environment. This approach ensures that urban spaces remain usable for roads, parking lots, or green areas, while underground, a powerful water management solution is at work.
The unique design and large size of the JUMBO BLOCK® hollow blocks enable the effective storage of vast volumes of water. This water can either infiltrate naturally into the ground or be repurposed for irrigation, cooling, or flood protection, offering maximum flexibility and sustainability.
Powerful Data & Key Metrics
- Capacity: Each block stores an impressive 13.9 m³ of water, ensuring significant water retention with fewer components.
- Water Column Per Block: Each JUMBO BLOCK® supports a water column of 2224 liters per m², providing exceptional flood protection capacity.
- Total Volume of a System: The system's total capacity is determined by the number of installed blocks, allowing for customized, scalable solutions tailored to specific project needs.
With its modular, scalable, and sustainable design, the JUMBO BLOCK® system addresses modern flood protection challenges, offering a reliable, cost-effective, and eco-friendly solution for urban, rural, and industrial applications.

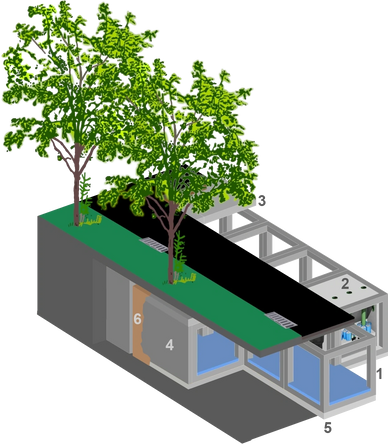

JUMBO BLOCK® System Components
1️⃣ JUMBO BLOCK®

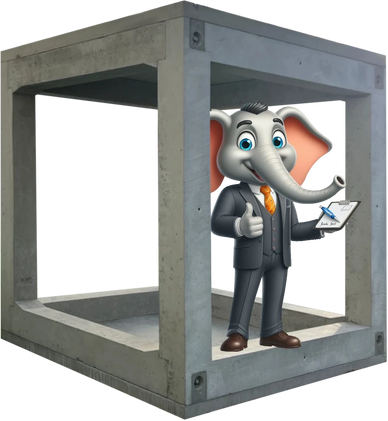

The core of the system – a massive, hollow, load-bearing concrete module (2.5 m x 2.5 m x 2.5 m) with an impressive capacity to support up to 792 tonnes. This block is designed for underground installation, forming the backbone of a modular and scalable retention system.
2️⃣ Sedimentation and Filtration Inside the Block
The built-in filtration system captures sediments and impurities within the JUMBO BLOCK® itself. This design prevents clogging and extends the lifespan of the system, while maintaining a continuous water flow.
3️⃣ Heavy-Duty Cover Plate
The cover plate provides an ultra-strong, load-bearing surface above the JUMBO BLOCK®. It enables heavy-duty applications like roads, airport runways, and industrial sites, while ensuring surface stability and protecting the system below.
4️⃣ Side Plate
Side plates are installed to enclose the JUMBO BLOCK® modules on the sides, preventing lateral water movement and ensuring system integrity. They help stabilize the overall structure and protect against shifting forces.
5️⃣ Base Plate
The base plate provides a stable foundation for each JUMBO BLOCK®, distributing the weight evenly and creating a secure, level base. This feature is essential for ensuring structural stability and longevity.
6️⃣ Sealing System (Geofoil or Landfill Foil)
A high-performance sealing system using either geofoil or landfill foil ensures a watertight enclosure. This prevents the infiltration or leakage of water, protecting the structural integrity of the block and allowing for optimal water retention.
Interesting JUMBO BLOCK Movies
Experience the Future of Flood Prevention and Water Management!
In a world increasingly threatened by extreme weather events, the innovative JUMBO BLOCK® System emerges as the ultimate solution. Watch how this groundbreaking technology transforms urban landscapes into resilient, water-secure environments.
Join the Movement: Be part of a community that values sustainability, innovation, and safety. Together, we can create a future where water is not a threat but a source of life and prosperity.
JUMBO BLOCK stands for safety through retention
In this film, we take a short journey through weather extremes and our technological solution to them. We can't change the weather, but we can adapt. We are working on a water-resilient future. Let us immerse ourselves in a realistic architectural model and discover the advantages of the Jumbo-Block system.
JUMBO BLOCK® Leaves Production: 16-Ton Forklift in Action
Experience how a 16-ton forklift safely and precisely transports the massive JUMBO BLOCK® out of the warehouse! The innovative JUMBO BLOCK® system, made from exceptionally durable materials, provides solutions for rainwater harvesting, infiltration, and heavy-duty applications.
