Case Study
The JUMBO BLOCK® system provides a compelling solution ensuring flood protection.
Flood Protection through Retention
Prevention of Flooding
Planning Area: 55 x 65 m
Building Footprint: 2 x 326.6 m²
Roadways: 2 at 4.5 m, 4 at 3.75 m
Road Substructure
48 Jumbo Block Standard (13.9 m³/block)
116 Jumbo Block XL (27.6 m³/block)
82 Heavy-duty plates
Waterproofing
Available Retention Volume: 3868.8 m³
Expandable
Flood Height:
0.0 mm
Floods without Retention
Planning Area: 55 x 65 m
Building Footprint: 2 x 326.6 m²
Roadways: 2 lanes at 4.5 m, 4 lanes at 3.75 m
Available Retention Volume: 0 m³
Flood Height with Comparable Volume:
1020 mm
This image depicts a common scene observed in many cities during heavy rainfall events.
The slightly flooded street is a clear indication that rainwater cannot drain away quickly enough.
In fully developed urban areas, especially large cities, the ground is heavily sealed by buildings and roads, preventing rainwater from infiltrating the soil. This leads to an overload of the sewage system and flooding.
Large-volume retention systems are crucial in such situations because they:
Store rainwater: They capture large amounts of rainwater and release it slowly.
Prevent sewer overload: By storing water, the load on the sewage system is reduced, decreasing the risk of flooding.
Mitigate flood events: Retention systems can help mitigate the impacts of heavy rainfall events, minimizing damage to buildings and infrastructure.
Promote urban cooling: Evaporating water from retention systems contributes to cooling the city and can help reduce heat islands.
Example Structure of a JUMBO BLOCK® System
Modular Construction
Capacity and Composition
Modular Construction
- JUMBO BLOCK® System Block
- Not shown
- Rectangular Cover/Closure/Base Plates
- Roadway (or Building Area)
- Base layer (typically gravel mix)
- Support/Infiltration Layer (Typically Gravel/Sand Mix)
Standard Module Size
2.5 x 2.5 x 2.5 meters
Sealings
Capacity and Composition
Modular Construction
Special Geomembranes
Flexible films serving as a sealing layer on module surfaces.
Bitumen Sheets
Applied directly or as prefabricated sheets.
Liquid Membranes
Polymer or polyurethane coatings for seamless, flexible seals.
Capacity and Composition
Capacity and Composition
Capacity and Composition
Capacity
Each standard module holds 13.9 cubic meters of water over a 6.25 square meter area. This high-capacity storage is ideal for flood protection and managing water scarcity.
Unlimited System Capacity
The total capacity of a JUMBO BLOCK® system is determined by connecting multiple modules, allowing flexibility and scalability to meet sp
Capacity
Each standard module holds 13.9 cubic meters of water over a 6.25 square meter area. This high-capacity storage is ideal for flood protection and managing water scarcity.
Unlimited System Capacity
The total capacity of a JUMBO BLOCK® system is determined by connecting multiple modules, allowing flexibility and scalability to meet specific project requirements.
Assembly
The system can be freely assembled, provided local conditions are met, offering flexibility in installation to suit various project needs.
Water Inlet
Stages of Water Treatment
Water Treatment
Water flow into the JUMBO BLOCK® system can be managed in various ways, including:
- Gutters
- Gully Drains

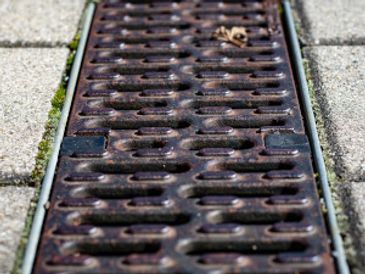

- Surface Inlets (e.g., manholes or grating channels)
- Infiltration Systems
- Pumping Systems
Surface Runoff
Water runoff from surfaces such as:
- Roads
- Parking Lots
- Sidewalks
can be effectively directed into the JUMBO BLOCK® system, ensuring efficient water management and retention.
Water Treatment
Stages of Water Treatment
Water Treatment
The JUMBO BLOCK® system is designed to not only prevent surface flooding but also to harness rainwater for reuse in various non-potable applications. By incorporating advanced sedimentation and filtration processes, the system ensures that rainwater is treated effectively, making it suitable for diverse uses beyond just drainage.
Rainwater
The JUMBO BLOCK® system is designed to not only prevent surface flooding but also to harness rainwater for reuse in various non-potable applications. By incorporating advanced sedimentation and filtration processes, the system ensures that rainwater is treated effectively, making it suitable for diverse uses beyond just drainage.

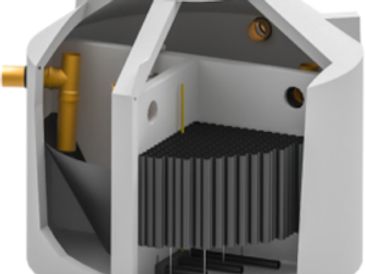

Rainwater is initially treated through sedimentation, a process that efficiently removes solids and other contaminants. This system can be customized with one or more sedimentation units depending on its application and size, ensuring optimal performance. The integrated single-stage sedimentation system is capable of filtering out particulate matter from rainwater runoff, setting the stage for further purification if needed.
Combined with advanced filtration options, the JUMBO BLOCK® system provides a comprehensive solution for rainwater management, turning potential waste into a valuable resource for non-drinking water applications.
Stages of Water Treatment
Stages of Water Treatment
Stages of Water Treatment
- Sedimentation -
Initial removal of solids.
- Adsorption -
Binding and removal of dissolved substances.
- Filtration -
Purification to remove finer particles.
- Chemical Precipitation -
Removal of specific chemical contaminants.
- Filtration Unit -
The JUMBO BLOCK® system uses multiple filter elements, depending on the application and size, to ad
- Sedimentation -
Initial removal of solids.
- Adsorption -
Binding and removal of dissolved substances.
- Filtration -
Purification to remove finer particles.
- Chemical Precipitation -
Removal of specific chemical contaminants.
- Filtration Unit -
The JUMBO BLOCK® system uses multiple filter elements, depending on the application and size, to address various contaminants.
- Filtration Capabilities -
Organic Compounds
Heavy Metals
Mineral Oil Hydrocarbons
Polycyclic Aromatic Hydrocarbons
These filtration options ensure rainwater is thoroughly treated and suitable for various non-drinking water applications.
Interesting JUMBO BLOCK Movies
Experience the Future of Flood Prevention and Water Management!
Experience the Future of Flood Prevention and Water Management!
Experience the Future of Flood Prevention and Water Management!
In a world increasingly threatened by extreme weather events, the innovative JUMBO BLOCK® System emerges as the ultimate solution. Watch how this groundbreaking technology transforms urban landscapes into resilient, water-secure environments.
Join the Movement: Be part of a community that values sustainability, innovation, and safety. Together, we can create a future where water is not a threat but a source of life and prosperity.
JUMBO BLOCK stands for safety through retention
Experience the Future of Flood Prevention and Water Management!
Experience the Future of Flood Prevention and Water Management!
In this film, we take a short journey through weather extremes and our technological solution to them. We can't change the weather, but we can adapt. We are working on a water-resilient future. Let us immerse ourselves in a realistic architectural model and discover the advantages of the Jumbo-Block system.
Would you like to see more?
Experience the Future of Flood Prevention and Water Management!
Would you like to see more?
Please visit our YouTube channel.
